NX Composites: Elevating Composite Product Development

Empowering High-Performance Engineering

Siemens’ NX Composites, part of the Xcelerator portfolio, revolutionizes composite product development by integrating cutting-edge digital twin technology. This transformative solution connects design, simulation, and manufacturing, delivering unmatched efficiency and precision for composite engineering challenges.

Addressing Industry Challenges

Inefficient data flow increases time to market

Difficulty making decisions on shape, material and process

Costly design for manufacturing done on the shop floor

Lack of common methods result in low rate and quality

In traditional composite development, organizations face:

  • Fragmented Processes: Disconnected workflows slow decision-making and reduce productivity.
  • Production Delays: Design modifications on the shop floor increase costs and time to market.
  • Quality Concerns: Inconsistent methodologies lead to low-quality outputs and higher rejection rates.
NX Composites overcomes these hurdles with its holistic approach, enabling seamless collaboration and streamlined production.
Core Features and Capabilities

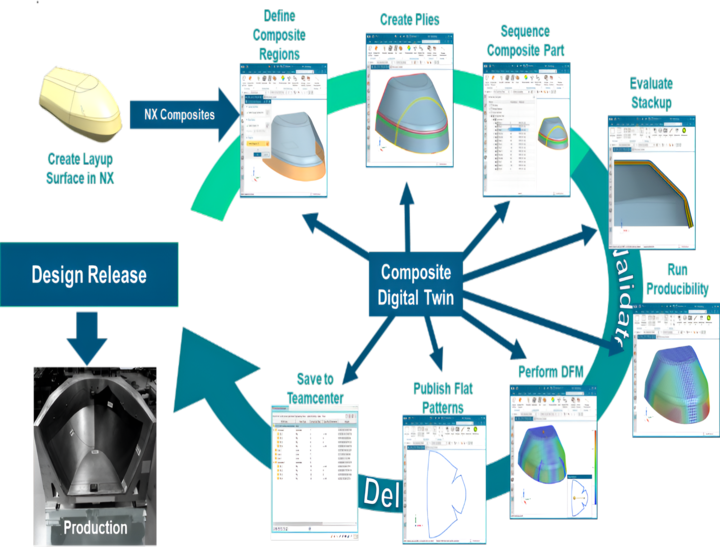

1. Digital Twin for Composite Excellence
  • Integrates all phases of composite development, from concept to production.
  • Enhances decision-making with real-time data and intuitive tools.
2. Advanced Design and Simulation Tools
  • Interactive Composite Navigator: Simplifies design, sequencing, and manufacturability checks.

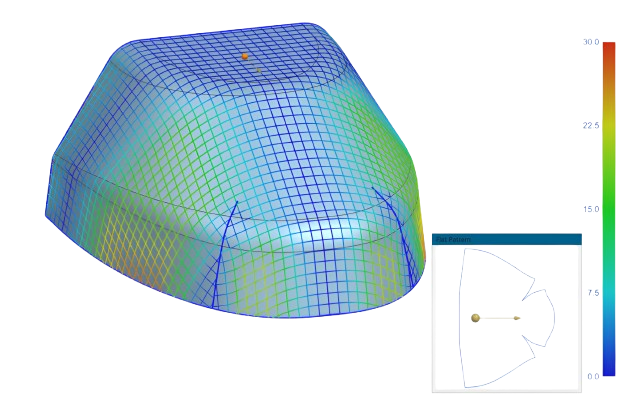

  • Rosette Mapping: Offers precise fiber simulation, ensuring performance and reliability.
  • Design for Manufacturability (DFM): Predicts and mitigates potential production challenges.
3. Automation-Driven Efficiency

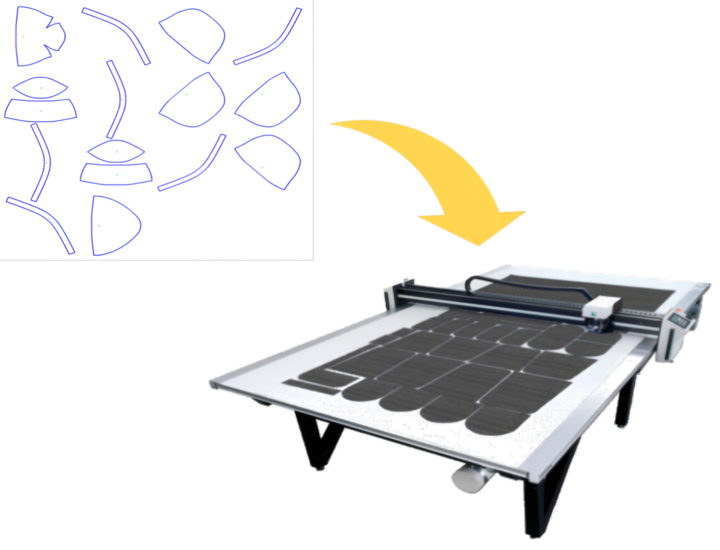

  • Automatically generates accurate flat patterns with manufacturing-ready DXF files.
  • Maintains associativity between 3D and 2D data for enhanced accuracy and reduced rework.
4. Enterprise Integration

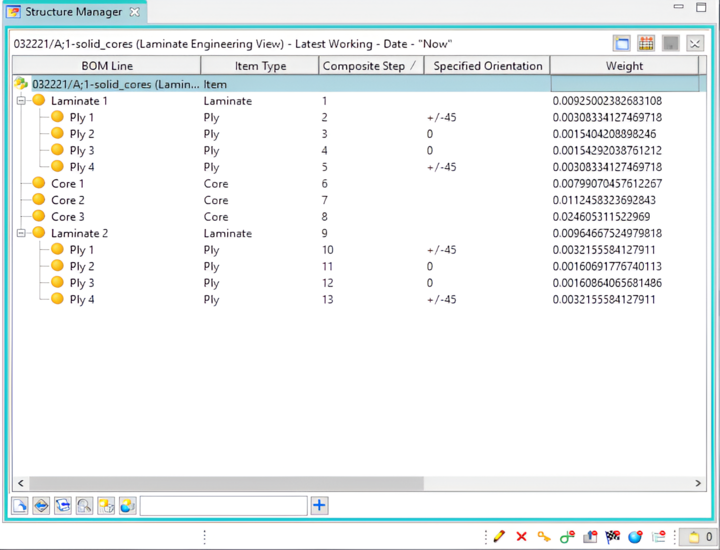

  • Connects seamlessly with Teamcenter for enterprise-level data management.
  • Provides comprehensive reports and material predictions to support decision-making.
Why NX Composites?
  • Flexibility and Accessibility: Value-Based Licensing ensures cost-effective scalability for diverse business needs.
  • Enhanced Collaboration: Integrates data across design, manufacturing, and enterprise systems for a unified workflow.
  • Unrivaled Accuracy: Industry-leading simulation tools deliver precision, reducing errors and ensuring high-quality outputs.
  • Maximized Efficiency: Streamlined updates and automation reduce cycle times, allowing faster time to market.
Transforming Composite Product Development

NX Composites empowers engineers and manufacturers to design, validate, and produce high-quality composite products efficiently. With its intuitive tools, robust integrations, and advanced simulation capabilities, NX Composites sets a new standard in composite engineering and manufacturing.
